Specifications
| Water Pressure Range [MPa] | Below 0.1 |
| Air Pressure Range [MPa] | 0.1 - 0.7 |
| Misting Spray Quantity [ｍL/min] | 0.5 - 500 |
| Air Flow Rate [L/min(nor)] | 9 - 200 (at 0.3 MPa) |
| Spray Width [mm] | 35 - 50 (at 50 mm) |
| Average Particle Size [μm] | Max.30 |
Materials
| Standard Materials | Stainless steel (SUS316L) |
| Compatible Materials | Contact us for details about other materials. |
Dimensions

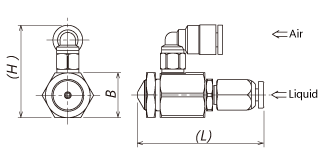

| MMAE 9･MMA 10･MMA 30･MMA 50 |
|---|
|
|
| Model | Dimensions[mm] | Size of application tube and connection | ||
|---|---|---|---|---|
| B | H | L | ||
| MMAE 9 | 12 | 26.5 | 33.5 | φ4 |
| MMA 10 MMA 30 MMA 50 |
14 | 29 | 37.5 | φ4 |

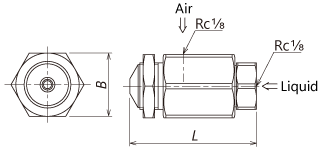

| MMA 100･MMA 200 |
|---|
|
|
| Model | Dimensions[mm] | Size of application tube and connection | |
|---|---|---|---|
| B | L | ||
| MMA 100 MMA 200 |
19 | 38 | Rc 1/8 |
