Specifications
| Pressure Range [MPa] | 0.05 - 1.0 |
| Water Flow Rate [L/min] at 0.3 MPa | 10 - 25 |
| Spray Angle at 0.3 MPa | 90° |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Contact us for details about other materials. |
Dimensions

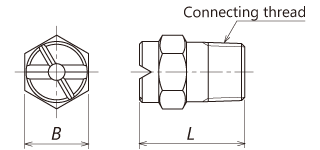

| KSRC |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 3/8 KSRC | 17 | 32 | R 3/8 |
| 1/2 KSRC | 22 | 38 | R 1/2 |

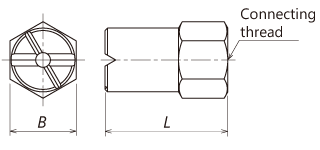

| KSRC-H |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 3/8 KSRC‥‥H | 22 | 38 | Rc 3/8 |
| 1/2 KSRC‥‥H | 27 | 50 | Rc 1/2 |
