Specifications
| Pressure Range [MPa] | 0.1 - 0.7 |
| Air Flow Rate [L/min (nor)] at 0.3 MPa | 290 |
| Spray Width [mm] | 30 (at 100 mm) |
Materials
| Standard Materials | Resin (PPS) |

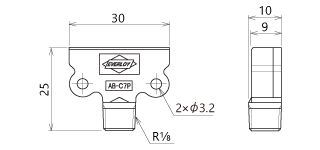

Dimensions
| AB-C7P |
|---|
|
|
Air Blaster Compact Type Resin AB-C
Nozzle can be installed in small spaces, allowing for space saving during equipment installation
Superior chemical and heat resistance through use of PPS resin
Catalog：P.14
