Specifications
| Pressure Range [MPa] | 2 - 6 |
| Water Flow Rate [mL/min] at 6 MPa | 50,100 |
| Spray Angle at 6 MPa | 80° - 90° |
| Mean Particle Size [μm] at 6 MPa | 19 |
Materials
| Standard Materials | Nozzle: Stainless steel (SUS303, SUS304) Filter : Polyethylene |

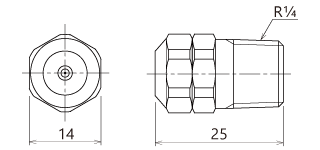

Dimensions
| KSME |
|---|
|
|
