Specifications
| Pressure Range [MPa] | 0.3 - 5 |
| Water Flow Rate [L/min] at 3 MPa | 31.6 - 111 |
| Spray Angle at 3 MPa | Front 120°, 150° Back 120°, 150° |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Contact us for details about other materials. |

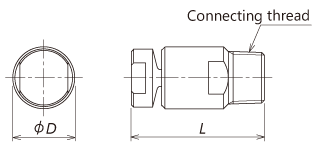

Dimensions
| DNP-B (Backward Spray) |
|---|
|
|
| DNP-F (Forward Spray) |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| D | L | ||
| 1/4 DNP････B(F) | 17 | 40 | R 1/4 |
| 3/8 DNP････B(F) | 20 | 43 | R 3/8 |
| 1/2 DNP････B(F) | 25 | 50 | R 1/2 |
| 3/4 DNP････B(F) | 30 | 55 | R 3/4 |
