Specifications
| Pressure Range [MPa] | 0.05 - 1.5 |
| Water Flow Rate [L/min] at 0.3 MPa | 0.8 - 400 |
| Spray Angle at 0.3 MPa | 15° - 110° |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Contact our business office for details about other materials. |
Dimensions

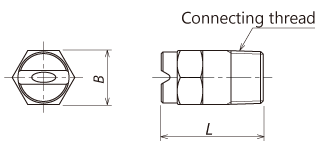

| KSH |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/8 KSH | 10 | 18 | R 1/8 |
| 1/4 KSH | 14 | 25 | R 1/4 |
| 3/8 KSH | 17 | 32 | R 3/8 |
| 1/2 KSH | 22,23 | 38 | R 1/2 |
| 3/4 KSH | 27 | 50 | R 3/4 |
| 1 KSH | 35 | 60 | R 1 |
| 1･1/4 KSH | 46 | 75 | R 1･1/4 |
| 1･1/2 KSH | 50 | 90 | R 1･1/2 |

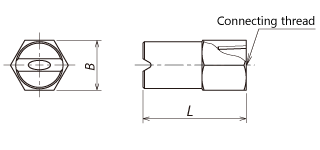

| KSH‥‥H |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/8 KSH‥‥H | 14 | 22 | Rc 1/8 |
| 1/4 KSH‥‥H | 19 | 32 | Rc 1/4 |
| 3/8 KSH‥‥H | 22 | 38 | Rc 3/8 |
| 1/2 KSH‥‥H | 27 | 50 | Rc 1/2 |
| 3/4 KSH‥‥H | 32 | 64 | Rc 3/4 |
| 1 KSH‥‥H | 41 | 80 | Rc 1 |
