Specifications
| Pressure Range [MPa] | 0.1 - 1 |
| Water Flow Rate [L/min] at 0.3 MPa | 1 - 150 |
| Spray Angle at 0.3 MPa | 140° |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Contact our business office for details about other materials. |
Dimensions

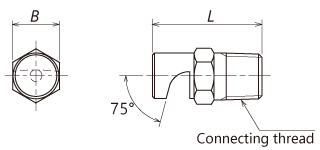

| KSY |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/8 KSY | 12 | 25 | R 1/8 |
| 1/4 KSY | 14 | 34 | R 1/4 |
| 3/8 KSY | 17 | 44 | R 3/8 |
| 1/2 KSY | 22 | 51 | R 1/2 |
| 3/4 KSY | 27(29) | 60 | R 3/4 |

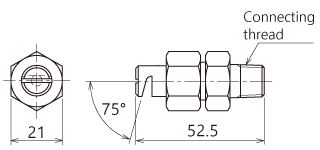

| KSAY |
|---|
|
|
| Model | Connecting thread |
|---|---|
| 1/4 KSAY | R 1/4 |
| 3/8 KSAY | R 3/8 |
