Specifications
| Pressure Range [MPa] | 0.1 ～ 1.5 |
| Water Flow Rate [L/min] at 0.3 MPa | 2 - 75 |
| Spray Angle at 0.3 MPa | 65° - 80° |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Contact our business office for details about other materials. |
Dimensions

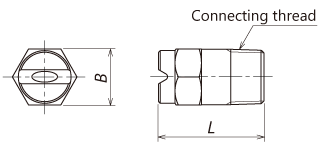

| KSHR |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/4 KSHR | 14 | 25 | R 1/4 |
| 3/8 KSHR | 17 | 32 | R 3/8 |
| 1/2 KSHR | 22,23 | 38 | R 1/2 |
| 3/4 KSHR | 27 | 50 | R 3/4 |
| 1 KSHR | 35 | 60 | R 1 |

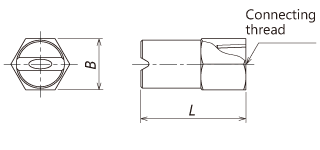

| KSHR-H |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/4 KSHR‥‥H | 19 | 38 | Rc 1/4 |
| 3/8 KSHR‥‥H | 21,22 | 45 | Rc 3/8 |
| 1/2 KSHR‥‥H | 26,27 | 50 | Rc 1/2 |
| 3/4 KSHR‥‥H | 32 | 64 | Rc 3/4 |
