Specifications
| Pressure Range [MPa] | 0.05 - 1.5 |
| Water Flow Rate [L/min] at 0.3 MPa | 4 - 75 |
| Spray Angle at 0.3 MPa | 40° - 65° on one side |
Materials
| Standard Materials | Stainless steel (SUS303) |
| Compatible Materials | Contact our business office for details about other materials. |

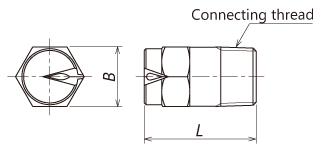

Dimensions
| KSH-RO |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/4 KSH‥‥-‥RO | 14 | 25 | R 1/4 |
| 3/8 KSH‥‥-‥RO | 17 | 32 | R 3/8 |
| 1/2 KSH‥‥-‥RO | 23 | 38 | R 1/2 |
| 3/4 KSH‥‥-‥RO | 27 | 50 | R 3/4 |
