Specifications
| Pressure Range [MPa] | 1 - 10 |
| Orifice Diameter [mm] | 1.0 - 5.0 |
Materials
| Standard Materials | Nozzle case : Stainless steel (SUS303) Tip : Cemented carbide |

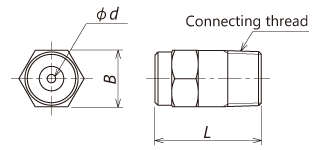

Dimensions
| HCJP |
|---|
|
|
| Model | Dimensions[mm] | Connecting thread | |
|---|---|---|---|
| B | L | ||
| 1/8 HCJP | 10 | 18 | R 1/8 |
| 1/4 HCJP | 14 | 25 | R 1/4 |
