Two fluids nozzle

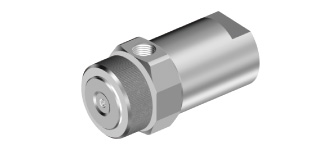

PNV

・Universal intermittent spray is possible for auto-cylinder type with highly variable flow rate control
・PV type allows for adjustment of universal spray patterns, from full cone to flat
・Simple assembly and disassembly do not require special tools Simple thorough cleaning

Download catalog here

Catalog：E28～E30

Specifications

Water Pressure Range [MPa]	0.01 - 0.04
Air Pressure Range [MPa]	0.2 - 0.5
Water Flow Rate [mL/min]	30 - 1510 (at 0.01 MPa - 0.04 MPa)
Air Flow Rate [L/min (nor)]	38 - 87 (at 0.3 MPa)
Spray Angle	20°
Average Particle Size [μm]	20 - 280
