Specifications
| Maximum Working Pressure [MPa] | 0.01 |
| Slit Width [mm] | 100 - 2000 |
| Slit Thickness [mm] | 3 - 5 |
Materials
| Standard Materials | Stainless steel (SUS304) |
Dimensions

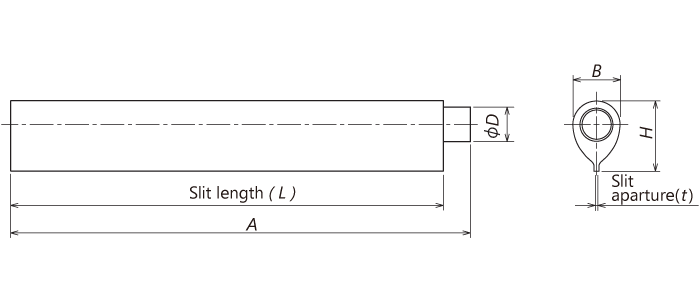

| TAK Single Supply Model |
|---|
|
|
Unit : mm
| L × t | D | A | B | H |
|---|---|---|---|---|
| 500 × 3.0 | 46 | L ＋ 50 | 69 | 108 |
| 1000 × 3.5 | 70 | L ＋ 80 | 104 | 158 |
| 1500 × 4.0 | 92 | L ＋ 100 | 136 | 202 |
| 2000 × 5.0 | 118 | L ＋ 100 | 175 | 256 |

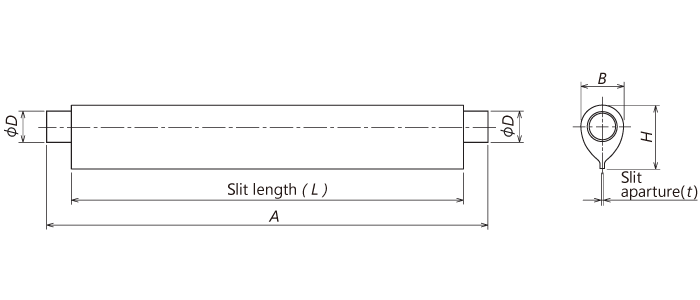

| TAK Double Supply Model |
|---|
|
|
Unit : mm
| L × t | D | A | B | H |
|---|---|---|---|---|
| 500 × 3.0 | 32 | L ＋ 100 | 50 | 81 |
| 1000 × 3.5 | 50 | L ＋ 160 | 74 | 116 |
| 1500 × 4.0 | 65 | L＋ 200 | 97 | 147 |
| 2000 × 5.0 | 84 | L ＋ 200 | 124 | 185 |
